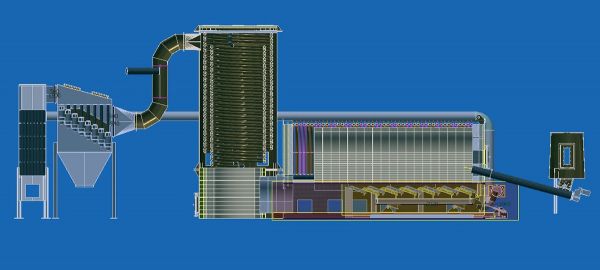

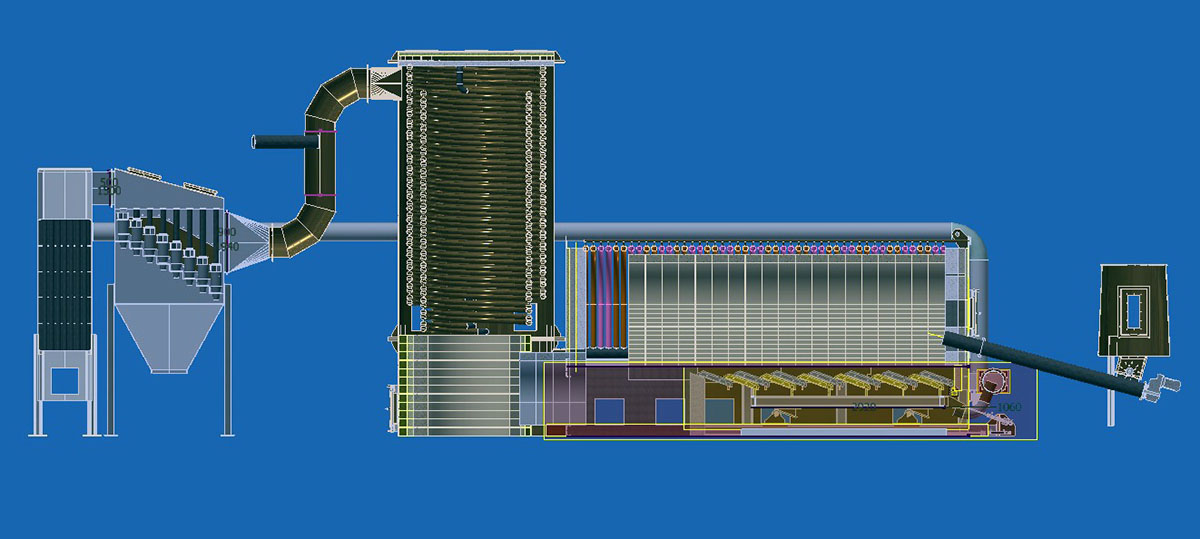

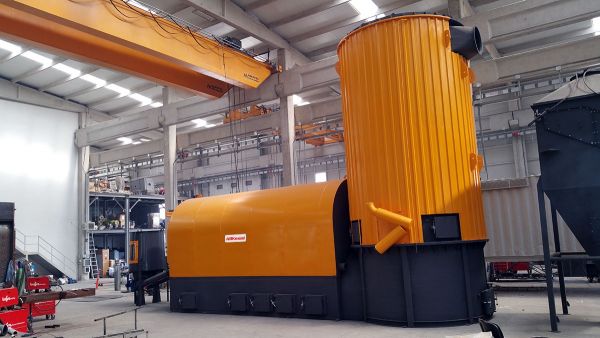

Vertical heat exchanger with double coil in carbon steel with 2 smoke passes.

The geometry of the construction guarantees maximum heat exchange and efficiency.

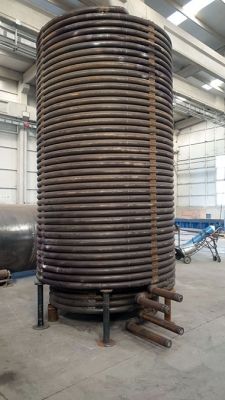

• Coils made with Mannesmann steel pipes with a 76.1 mm (3 ") diameter. The large diameter drastically reduces the ash deposit inside the pipes, reducing the frequency of maintenance and cleaning of the exchanger itself.

Materials:

• Carbon steel Code P235 GH Standard EN 10216-2
• Thickness 4 mm
• Exhaust gas passage speed: ≤ 20 m / s

The heat exchanger is equipped with flanges and counter flanges for the connection of delivery and return of the water, safety accessories, safety temperature limiter, smoke probes and water temperature.
