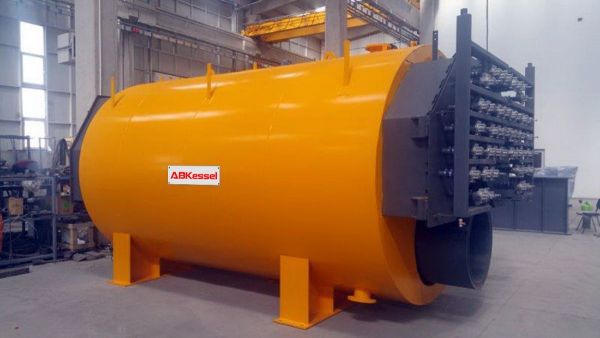

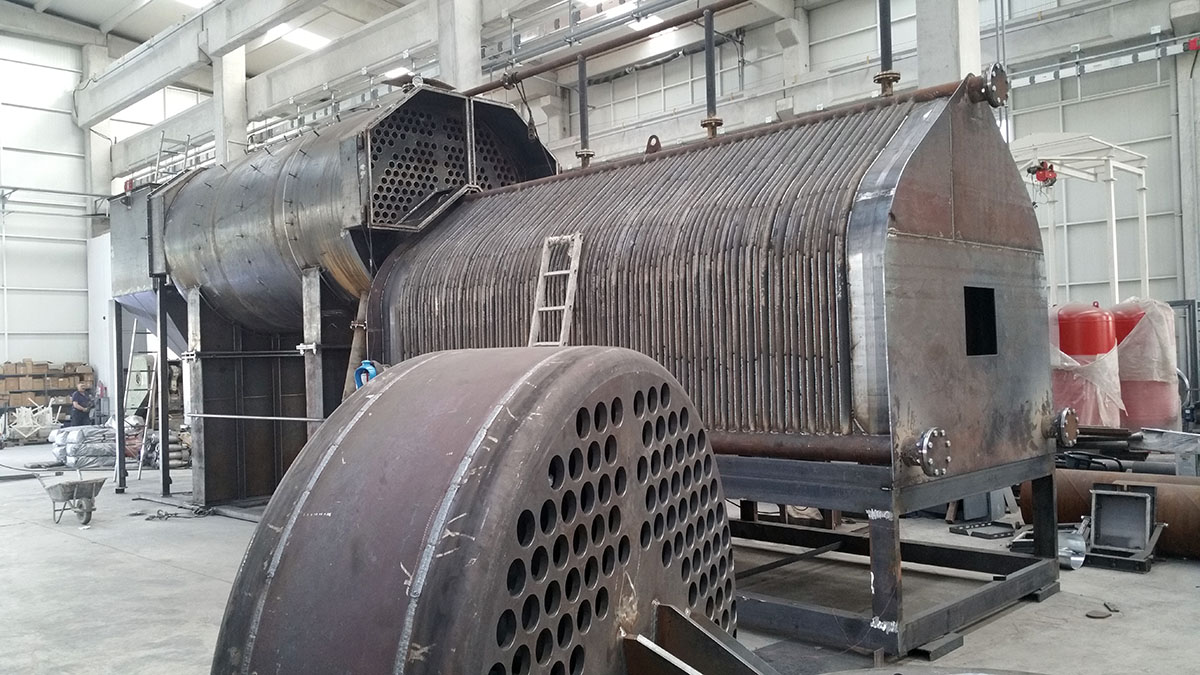

Carbon steel horizontal heat exchanger with 2/3 turns of smoke with "Wet Back" technology suitable for heat exchange between high temperature smoke and water.

The construction geometry ensures maximum heat exchange and efficiency.

• First turn in a single pass has the function of the radiant chambers, with "Fox" technology to absorb the expansions due to heating, the diameter is designed to increase the turbulence of the gas flow and increase the heat exchange, the sustained speed, drastically reduces the deposit of ash inside the tubes themselves, reducing the frequency of maintenance and cleaning of the exchanger itself.

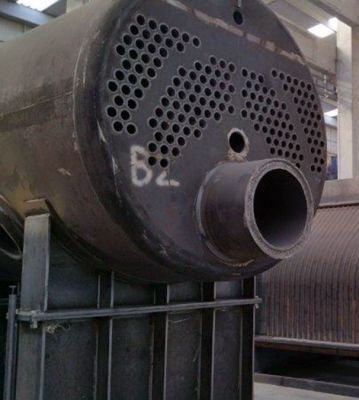

• Second and third smoke route with Mannesmann steel tubes with 76.1 mm (3 ") diameter. The large diameter drastically reduces the deposit of ash inside the pipes themselves, reducing the frequency of maintenance and cleaning of the exchanger itself.

Materials:

• Carbon steel Code P235 GH Norm EN 10216-2
• Thickness 4 mm
• Flow gas passing speed: ≤ 20 m/s
